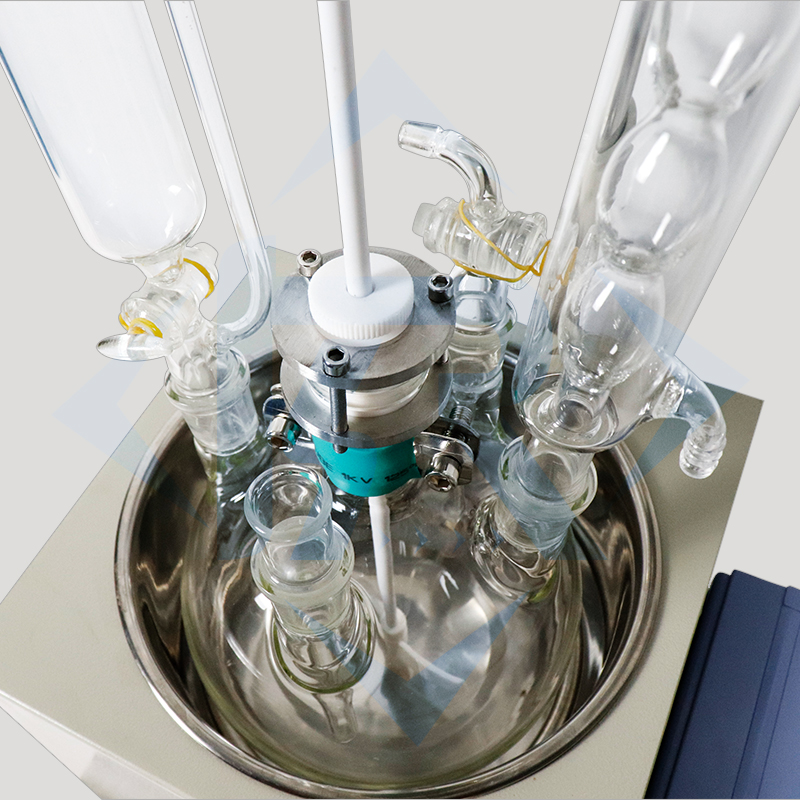

5L Lab mini Chemical Heater Reactor

Model: DF-5L

Glass: High borosilicate GG3.3

Seal: PTFE Sealing

Description

It can stir and react under the natural pressure or negative pressure in the sealed reactor and The evaporating and reflowing of the reacted solution is controlled. The material can be emptied from the outlet valve at the bottom of the reactor after reacting. It is easy to operate. The reactor is the ideal instrument for experiment of modern chemistry, biochemical, pharmacy and the advanced synthetic.

Tech Data

Mode	DF-1L	DF-2L	DF-3L	DF-5L
Mode
Glass Valume(L)	1L	2L	3L	5L

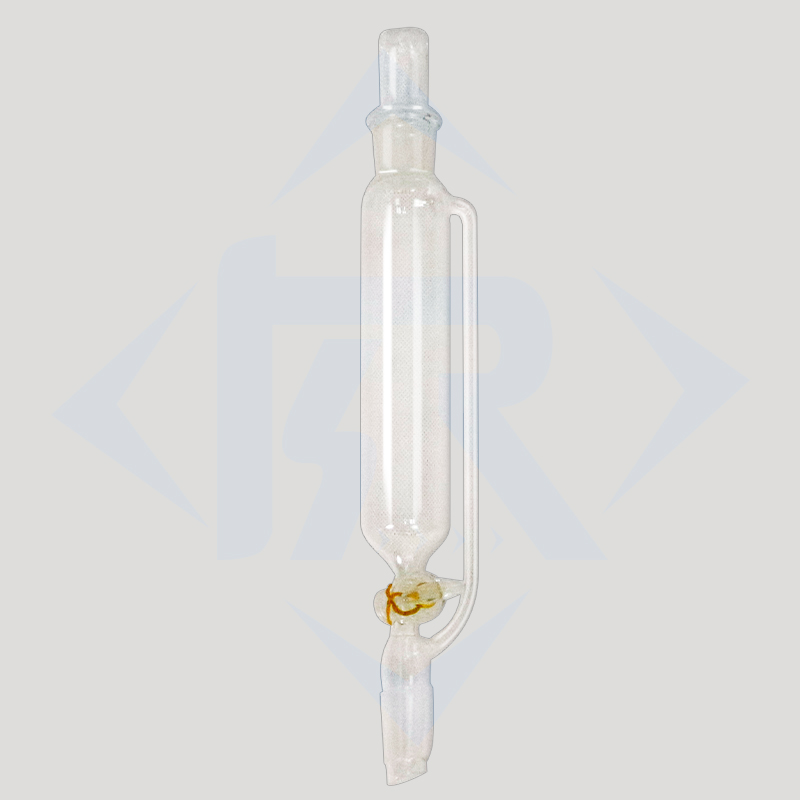

Constant pressure funnel(L)	0.5	0.5	0.5	0.5
Stirring Power (W)	40W	60W	60W	90W
Stirring Power (W)	180W Ex-proof
Stirring Speed（RPM)	60-1000
Dia. Stirring Rod(MM)	∮7
Power(KW)	1	1	1.5	1.5
Discharge Valve	PTFE discharge Valve
Stirring Rod	Stainless steel inside and PTFE outside
Voltage(V)	220V/50Hz

Feature

Overall Stainless steel (SS304)frame and screw with strong support and hardness
GG17 (3.3) high borosilicate glass with uniform thickness （6-8MM）and big glass mouth design to clear conveniently .
Double coil pipe inside Condenser
PTFE mechanical component sealing without any leakage and corrosion resistance
Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable;
Casters with brake fixed, it is convenient and stable
Stirring Rob is made of stainless steel inside and PTFE outside
Flange is used to? fix? stirring rod and? also protect? big glass mouth without crash .
Liner is made of stainless steel SS304 and water and oil can be filled
Ex-proof motor is optional for 10L,20L,30L,50L,100L,150L,200L
